In the wave of intelligent manufacturing, CNC machining centers, as core equipment, are driving the transformation of the manufacturing industry from "extensive processing" to "precision intelligent manufacturing." CNC machining centers integrating four-axis linkage technology, with their multi-dimensional machining capabilities, high precision, and high-efficiency production characteristics, have become "essential equipment" in aerospace, automotive parts, and mold manufacturing industries, providing crucial support for enterprises to overcome bottlenecks in processing complex workpieces and enhance their market competitiveness.

CNC Machining Centers: The "Cornerstone of Precision" in Modern Manufacturing

A CNC machining center is an automated machine tool that integrates multiple processes such as milling, drilling, boring, and tapping. It relies on a Computer Numerical Control (CNC) system to achieve precise control of the machining process. Its core advantage lies in "one-time clamping, multiple processes completed," which significantly reduces the number of workpiece clamping operations, lowers positioning errors, and enables rapid tool switching through an Automatic Tool Changer (ATC) system, significantly improving machining efficiency.

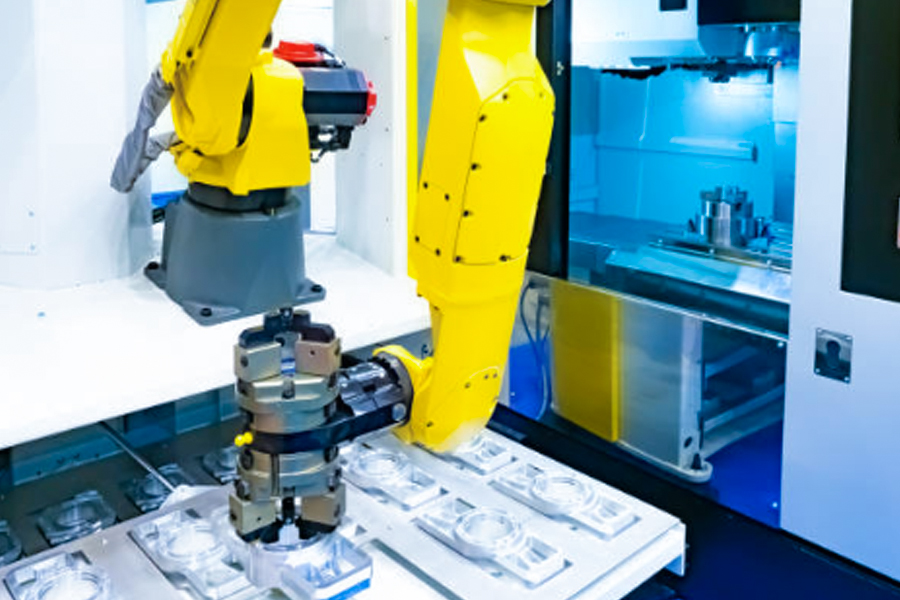

Compared to traditional machine tools, CNC machining centers possess three core characteristics: First, high-precision and stable output, employing precision components such as ball screws and servo motors, achieving a positioning accuracy of ±0.03mm and a repeatability of ±0.01mm, meeting the needs of high-precision parts processing; second, flexible production capabilities, allowing for rapid switching of processing schemes through programming, adapting to multi-variety, small-batch production scenarios, and reducing product changeover costs; and third, automation integration potential, enabling linkage with robots and logistics systems to build unmanned production lines, aligning with the intelligent upgrade needs of modern factories.

Four-axis CNC machine tools: Unlocking a new dimension of complex machining

Four-axis CNC machine tools add a rotary axis (usually the A or B axis, rotating around the X or Y axis) to the traditional three-axis (X, Y, Z axes) machining center, achieving coordinated control of "three-axis linear motion + one-axis rotary motion." This technological breakthrough allows CNC machining centers to move from "planar machining" to "three-dimensional machining," completely solving the machining challenges of complex curved surfaces and multi-faceted workpieces.

Core Technological Advantages of Four-Axis Linkage

Reduced clamping times and lower errors: Taking automotive engine cylinder heads as an example, traditional three-axis machining requires multiple clamping operations to complete the machining of holes and curved surfaces on different surfaces, easily leading to insufficient accuracy due to positioning deviations. Four-axis linkage machine tools, however, use rotary axes to drive the workpiece rotation, completing multi-face machining in a single clamping operation, reducing the error rate by over 60%.

Improved machining efficiency for complex workpieces: In the aerospace field, parts such as turbine blades and casings have numerous complex curved surfaces and oblique hole structures. Four-axis linkage, through the synchronous movement of rotary and linear axes, achieves continuous and smooth control of the tool path, increasing machining efficiency by 30%-50% compared to three-axis machine tools, while avoiding tool marks and ensuring surface roughness (Ra≤0.8μm).

Expanded process boundaries: For special workpieces such as irregularly shaped molds and medical implants, four-axis linkage can achieve complex processes such as "multi-angle milling" and "circumferential machining." For example, in mold cavity machining, the rotary axis can drive the workpiece to adjust its angle, allowing the tool to enter from the optimal path, reducing tool wear and extending its service life.
