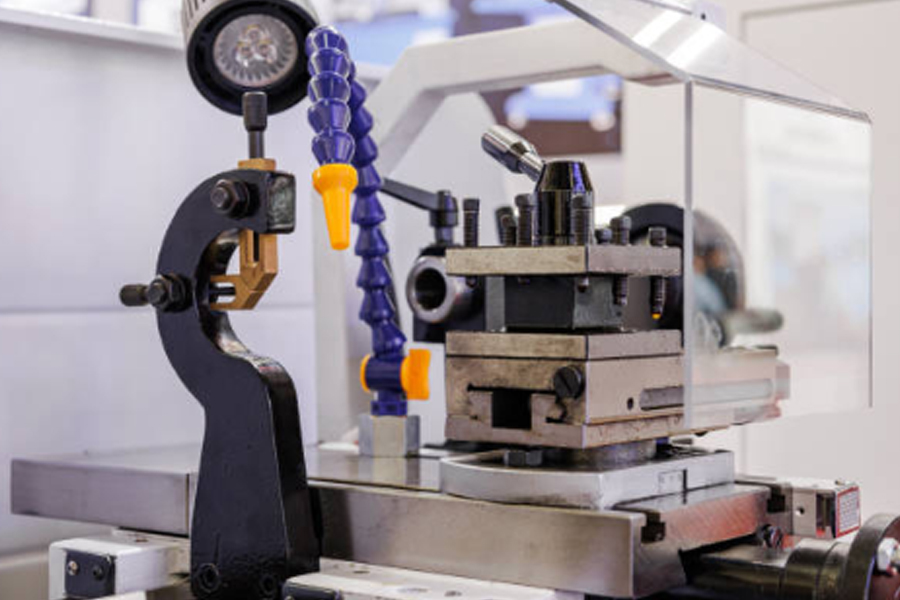

The core of precision machining for air conditioner flanges lies in two key processes: turning and milling. Turning primarily processes the flange's connecting surface. Simply put, it aims to create a perfectly flat and smooth contact surface, ensuring a seamless fit with other components and leak-proof sealing. This requires the use of a precision CNC lathe, which meticulously cuts the surface bit by bit to achieve superb flatness control. Milling primarily handles the sealing groove, which has particularly demanding machining requirements. Its position and shape must be precisely aligned, ensuring perfect coaxiality. This ensures uniform force distribution and a reliable seal when the sealing ring is inserted. Controlling surface roughness is also crucial during machining, typically requiring a Ra 1.6 or higher finish, equivalent to a mirror finish. This is directly related to the long-term reliability of the seal. The effective coordination of these two processes ensures truly high-quality air conditioner flanges.

Analysis of the Quality Inspection Process for Flange Connecting Surface Flatness and Seal Groove Coaxiality

Inspecting the flatness of the flange connecting surface and the coaxiality of the seal groove is a key step in ensuring the sealing performance of air conditioners. During inspection, we first use a precision coordinate measuring machine (CMM) to scan the entire flange connection surface, generating a detailed surface height map. This allows us to accurately calculate the flatness error, which must be kept to an extremely small range, such as a fraction of the thickness of a human hair. Next, the coaxiality of the seal groove is typically checked using a high-precision laser tracker or a dedicated coaxiality measuring instrument. During operation, the instrument rotates around the flange's central axis, measuring the radial runout at multiple points on the inner wall of the seal groove in real time to determine whether it is evenly distributed around the central axis. Surface roughness is also measured at multiple points using a contact or optical profilometer to ensure that the texture meets industry standards. The entire inspection process strictly adheres to the operating instructions, and every measurement data is carefully recorded and compared to process requirements. Only products that fully meet the standards can proceed to the next stage.

Key Technical Points in the Entire Air Conditioner Flange Manufacturing Process: From Raw Materials to Finished Product Inspection

The manufacturing quality of air conditioner flanges begins with material selection. First and foremost, material selection is crucial. Specific alloy steels or high-quality stainless steels with high strength and excellent corrosion resistance must be used, which directly determines the flange's durability. After receiving qualified raw materials, precision machining is crucial. This requires strict control of turning and milling accuracy, particularly the flatness of the flange connection surface, the positioning accuracy and coaxiality of the sealing groove, and the overall surface smoothness (i.e., surface roughness). These must be controlled to within 0.05mm to ensure a leak-proof seal after installation. After machining, each finished product undergoes rigorous inspection. Inspectors use precision measuring tools such as coordinate measuring machines, flat plates, and gauges to carefully check the critical dimensions and geometric tolerances mentioned above, ensuring that each flange perfectly meets the requirements of the drawings and standards. Unqualified products are absolutely not allowed to pass on to the next stage.

From material selection to final inspection, precision machining of air conditioner flanges is a highly integrated, systematic process. The core turning and milling processes ensure a smooth connection surface and precise sealing grooves, which are the foundation for a reliable seal. Quality inspection throughout the manufacturing process, particularly stringent controls for flatness, coaxiality, and surface roughness, is the ultimate guarantee of quality. The close coordination of these key processes and technical points determines the sealing performance and service life of air conditioner flanges.
